STORM

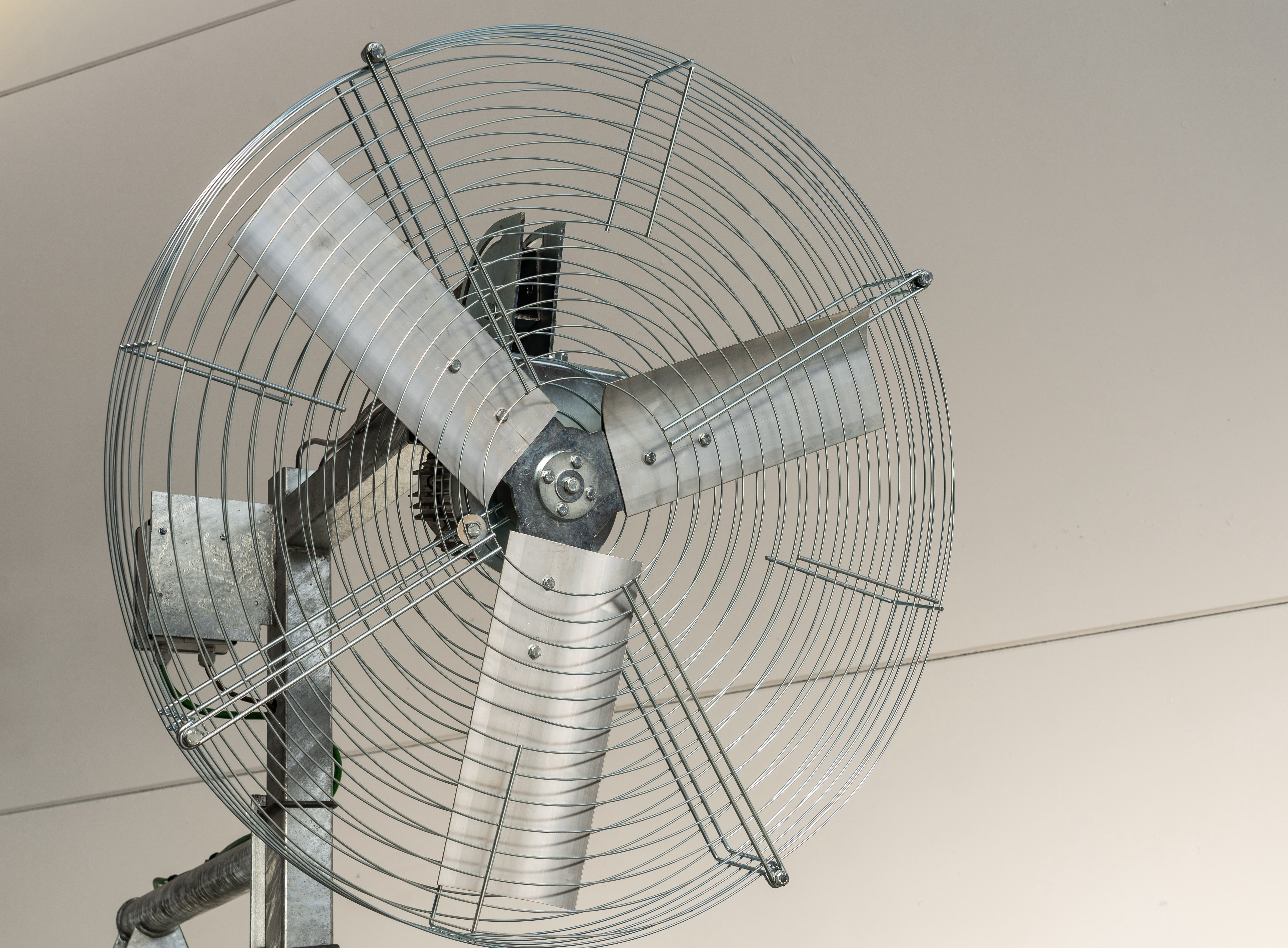

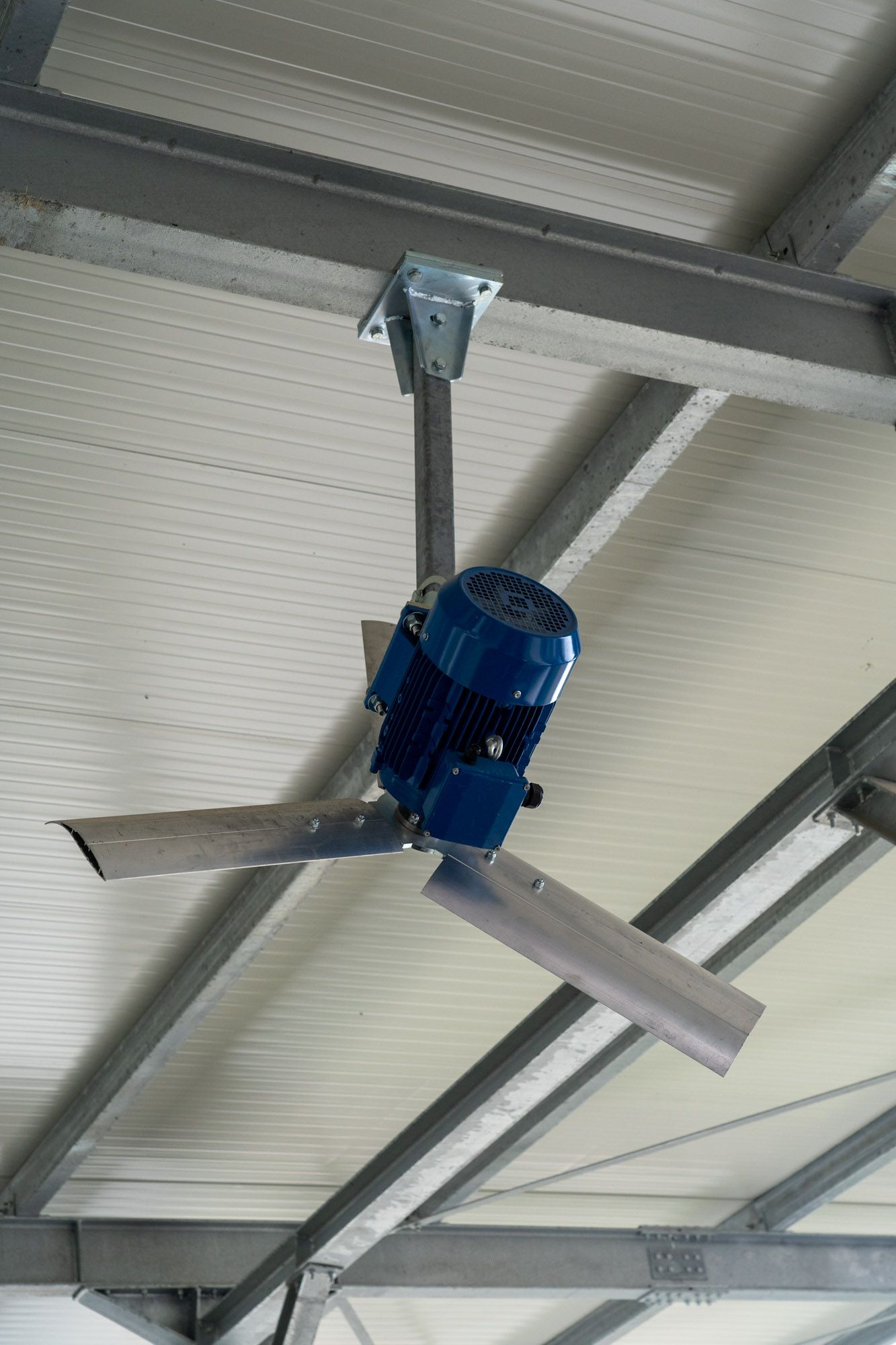

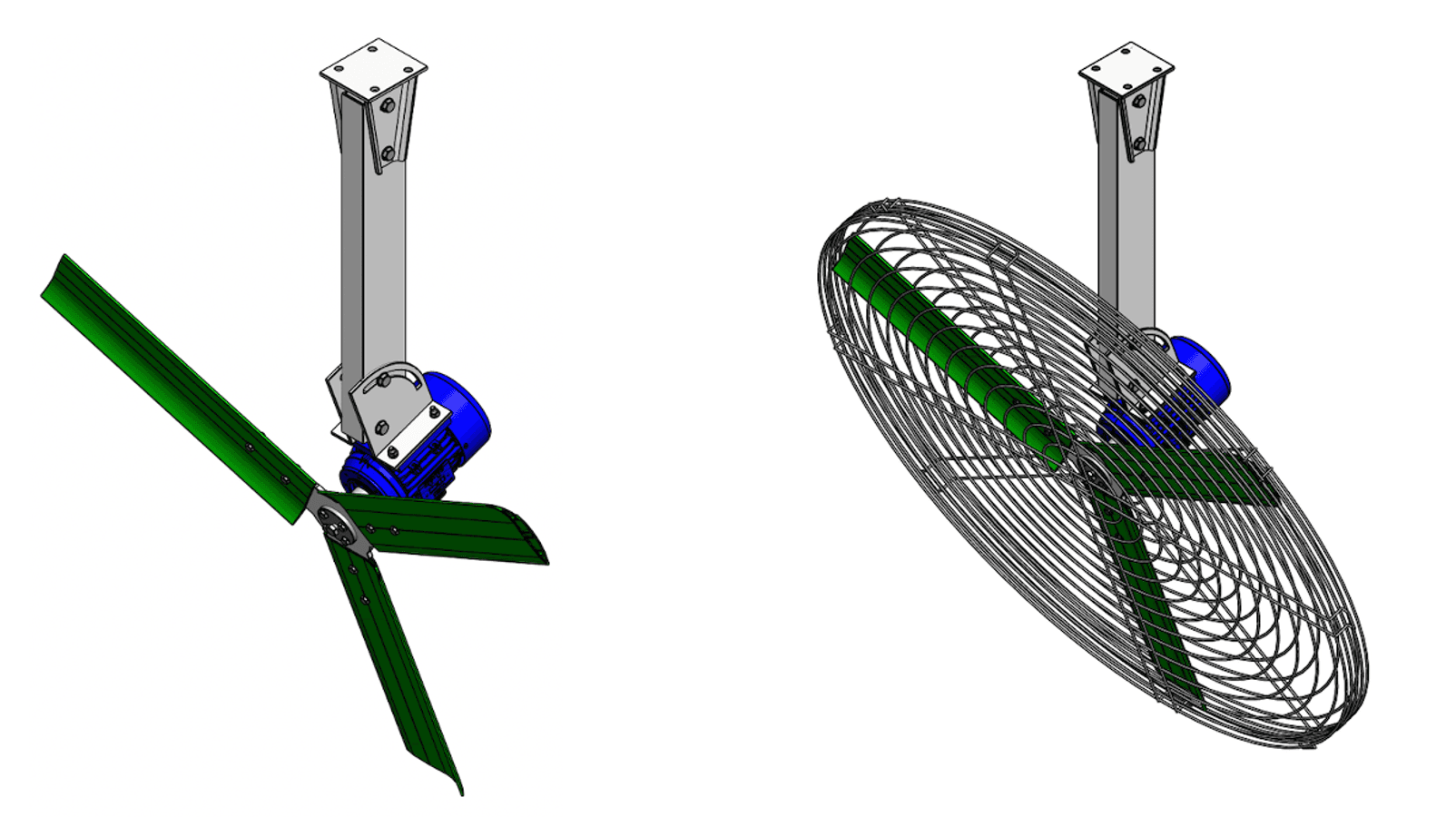

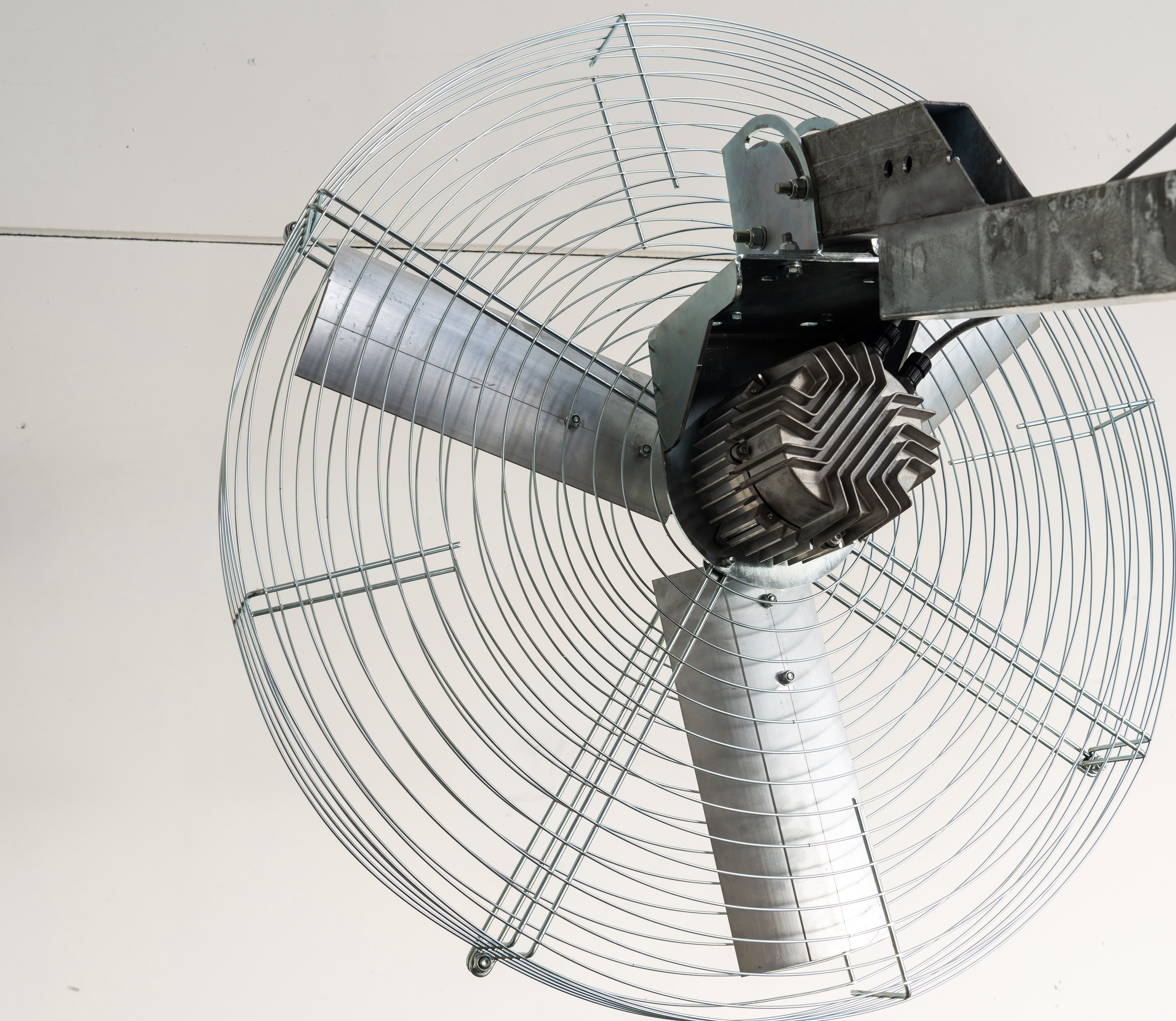

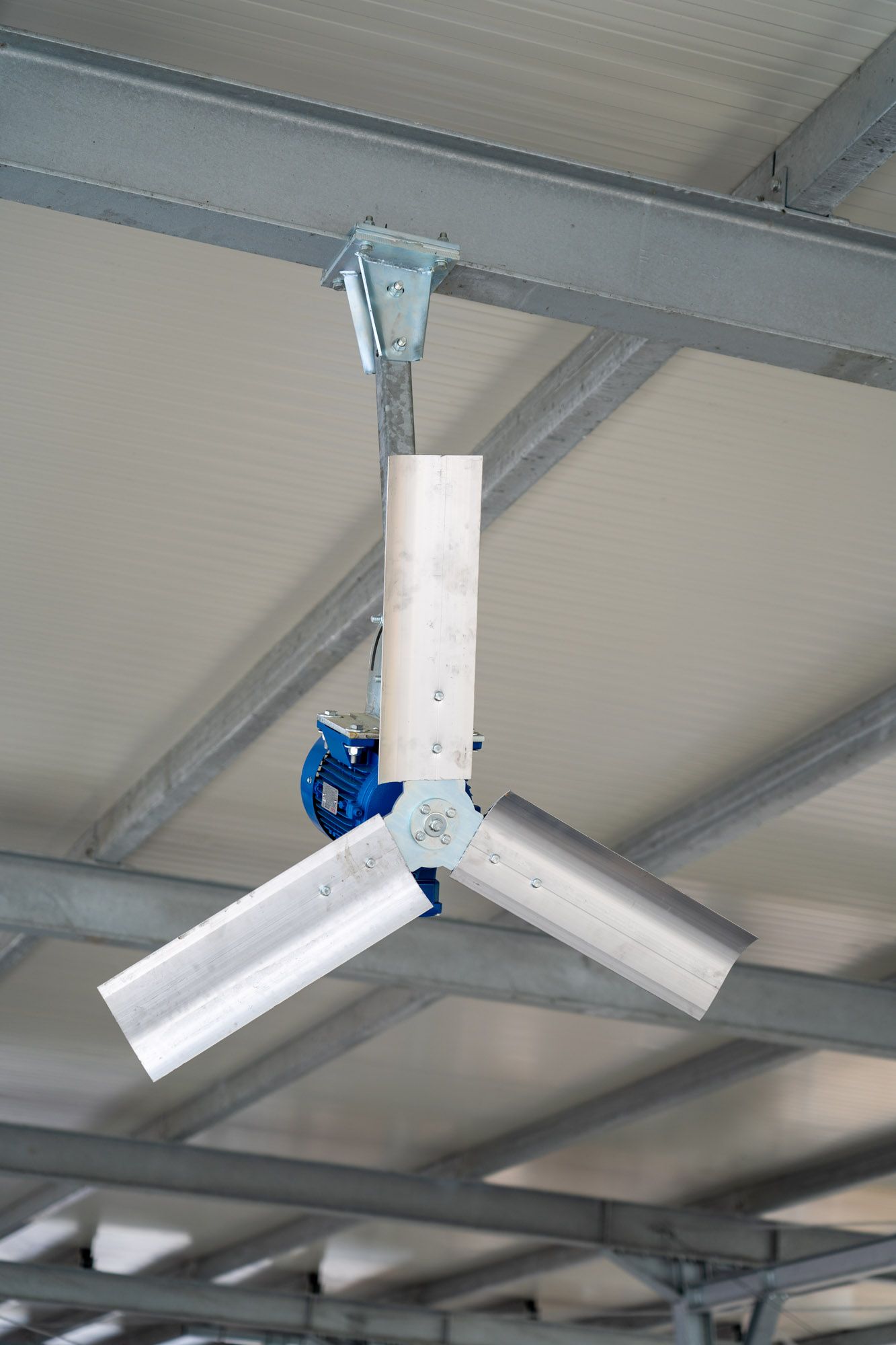

The brand new Agricow Storm fan is a 3-blade fan with a direct-drive motor that generates a very powerful unidirectional air flow. Thanks to its small dimensions, it is suitable for installation in low ceilings. It can be equipped with a safety grille.

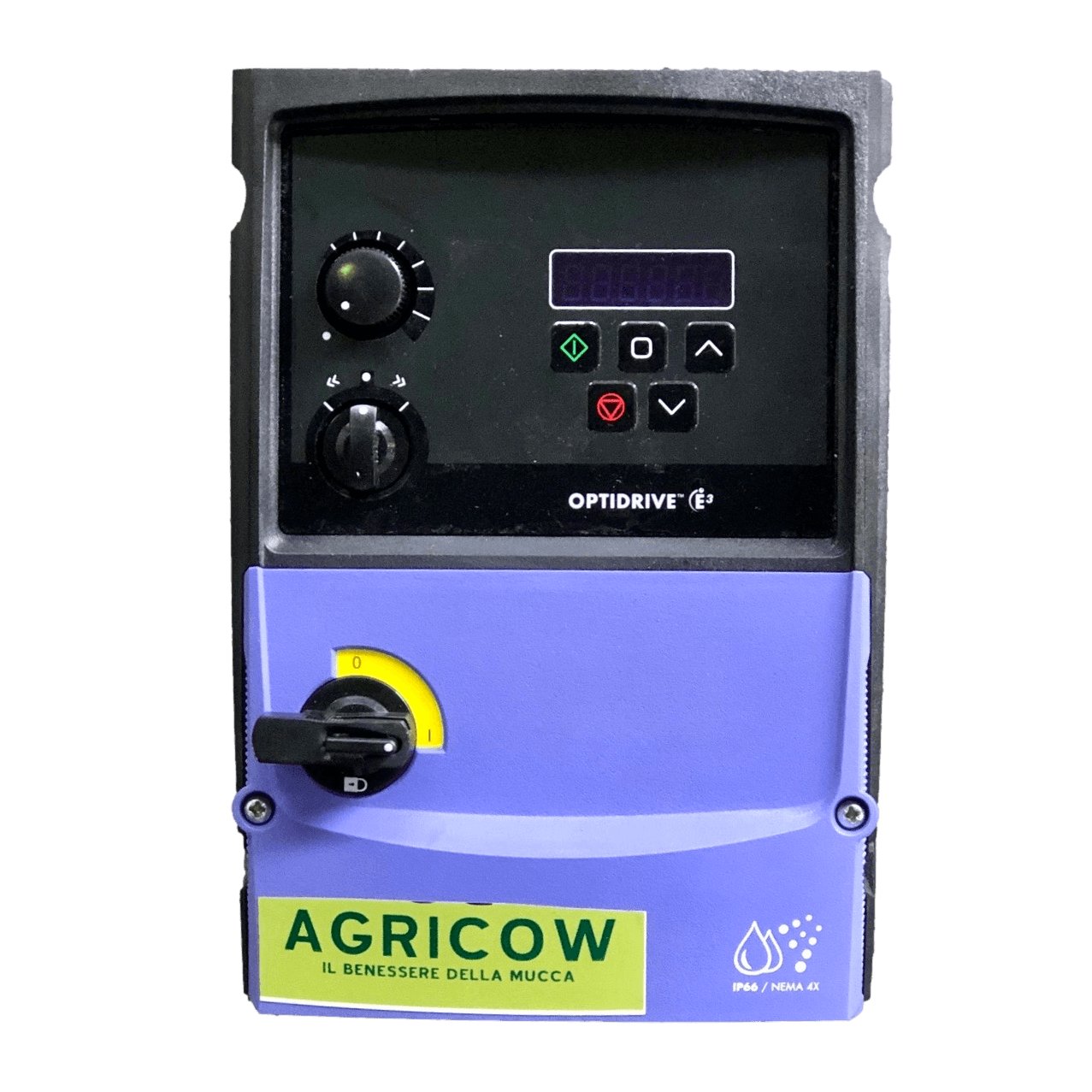

INVERTER
for speed regulation

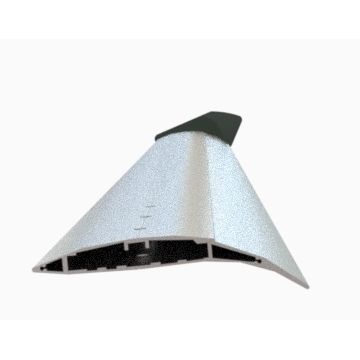

ALUMINUM BLADES
designed for greater air flow with lower energy consumption.

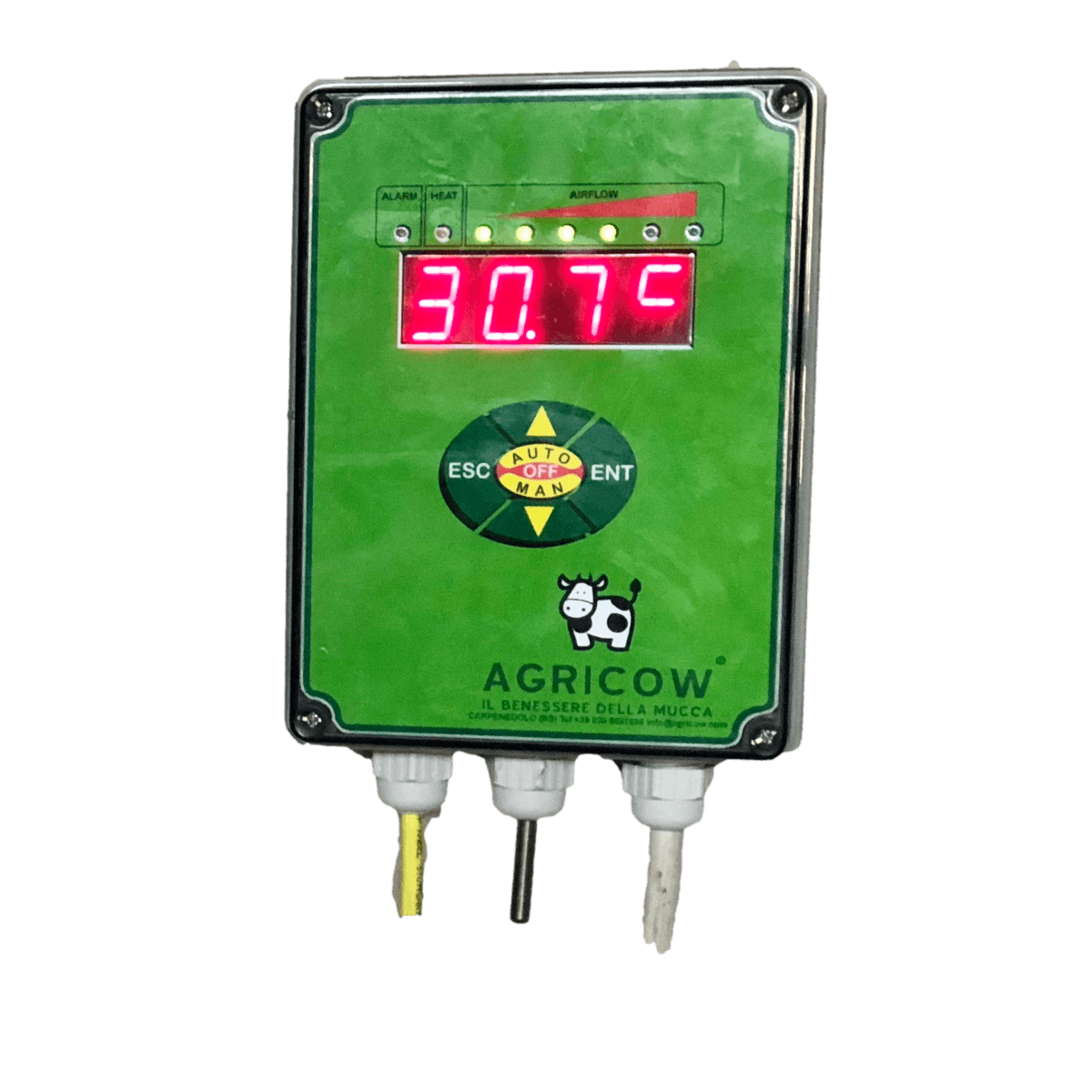

TEMPERATURE CONTROLLER
to automate the system according to the inside temperature.

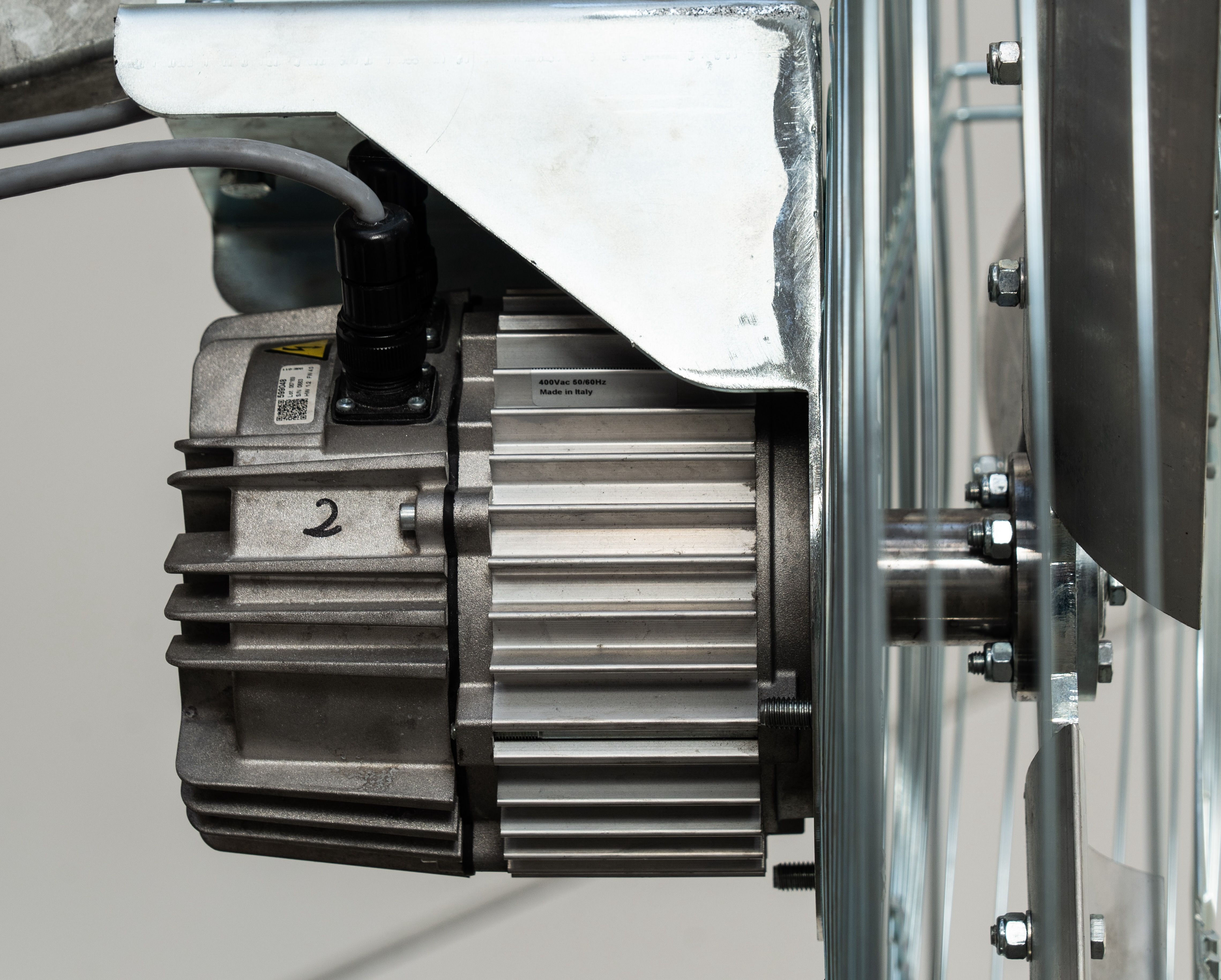

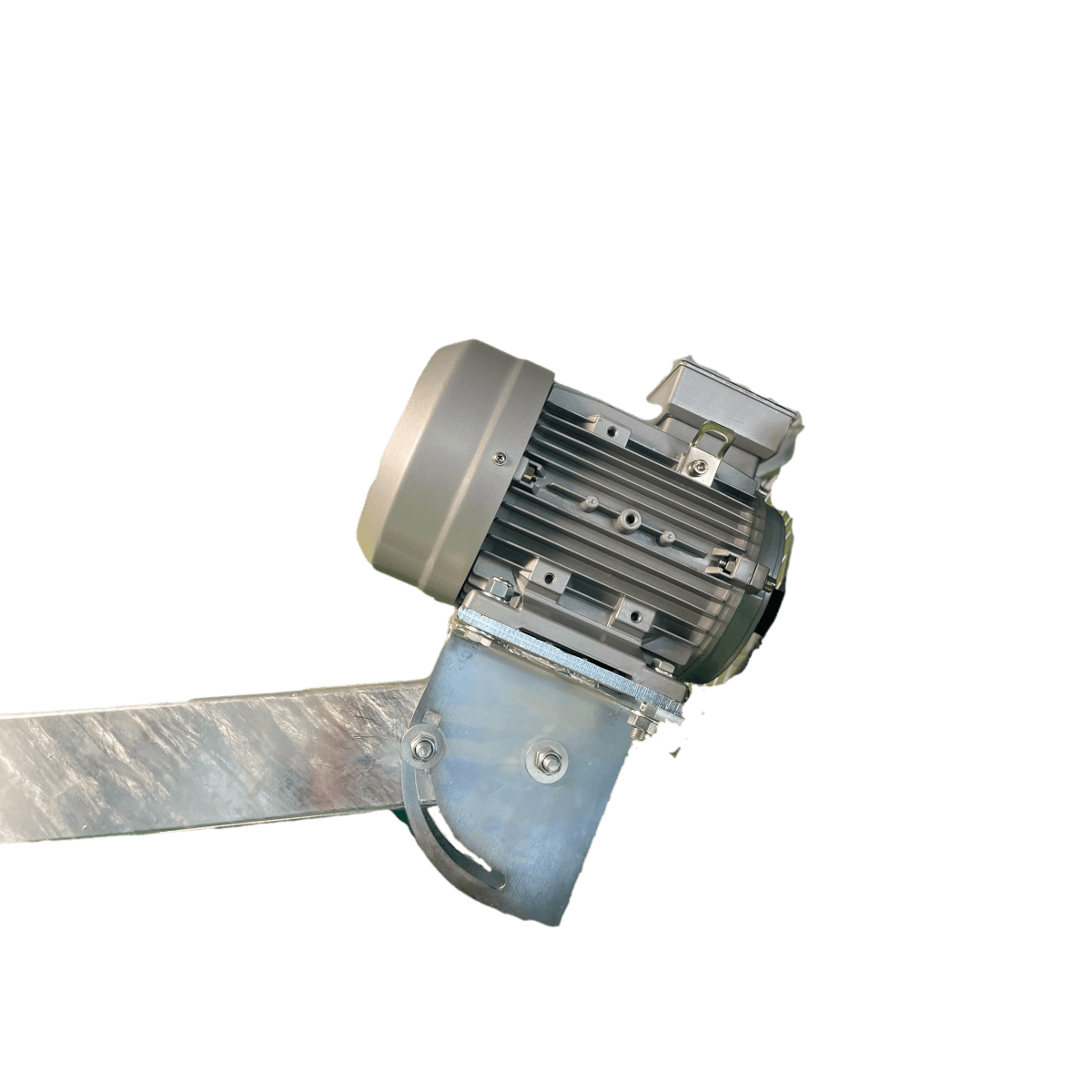

MOTOR
low energy consumption

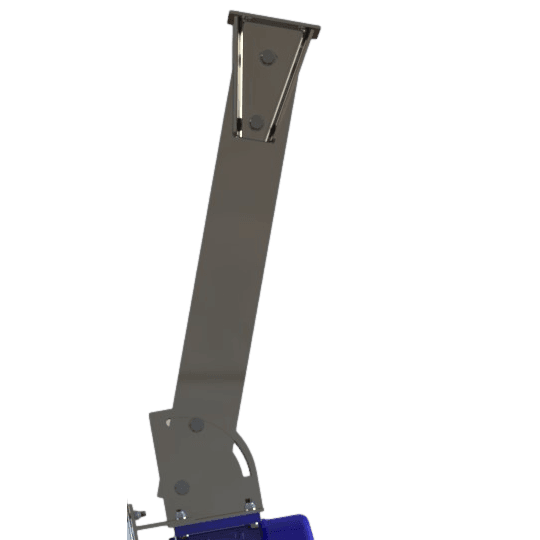

FIXED ON CEILING
adjustable connections according to the type of surface to be attached to.
TECHNICAL INFO
N. Blades
3
Diameter Ø
1,2 mt
Weight (Kg)
55 kg
Motor type/motor RPM
3-phase asynchronous 4-pole/1400
Engine data
230-400 VAC. 50/60 hz– r/min. 710 – A 7.28/4.18
Power (Hp/Kw)
2 hp -1,5 Kw
Ratio reducer
No reducer
RPM
710
Airflow (m³ / h)
122.000
Frequency (Hz)
50 hz
