THE AGRICOW STAINLESS STEEL
CABLE SCRAPER

The most practical and effective solution for cleaning barns!
It is fully made of galvanised steel in our factories.
100% AGRICOW MADE IN ITALY PRODUCTION
The Agricow stainless steel pulley scraper is made entirely of galvanised metal in our factories and is tailor-made.
It can be installed for single lanes or for double lanes. Agricow produces different models: with central channel guide or without channel guide.
ADVANTAGES OF THE AGRICOW SCRAPER
CLEANLINESS AND HYGIENE

Agricow scrapers guarantee effective cleaning of the lanes and of the animal's hooves, providing better hygienic conditions in the cubicle

BETTER FARM MANAGEMENT

thanks to their total customization and electronic programming, they allow the farmer to save machine supervision time and bring benefits to company management

LESS INFECTIONS AND DISEASES

the frequent movement of the scraper in the barn allows dirt to be transported away from the aisles, ensuring maximum cleanliness for the animals and thus reducing the risk of infection and disease

LOWER OPERATING COSTS

the low energy consumption allows the farmer considerable savings in terms of money and in terms of manpower. They are produced in different models and are adaptable to different types of surfaces and lane lengths up to 200 meters

TOTAL SAFETY

the Agricow scraper is equipped with a control panel that guarantees the safety of the animals: in case of an obstacle in the lane, the software prevents the scraper from moving forward, stopping it with an alarm.

TOTAL COMFORT

Agricow scrapers guarantee a total comfort environment as they are automatically programmable by time and can make up to 24 starts a day thanks to the software installed in the electronic panel

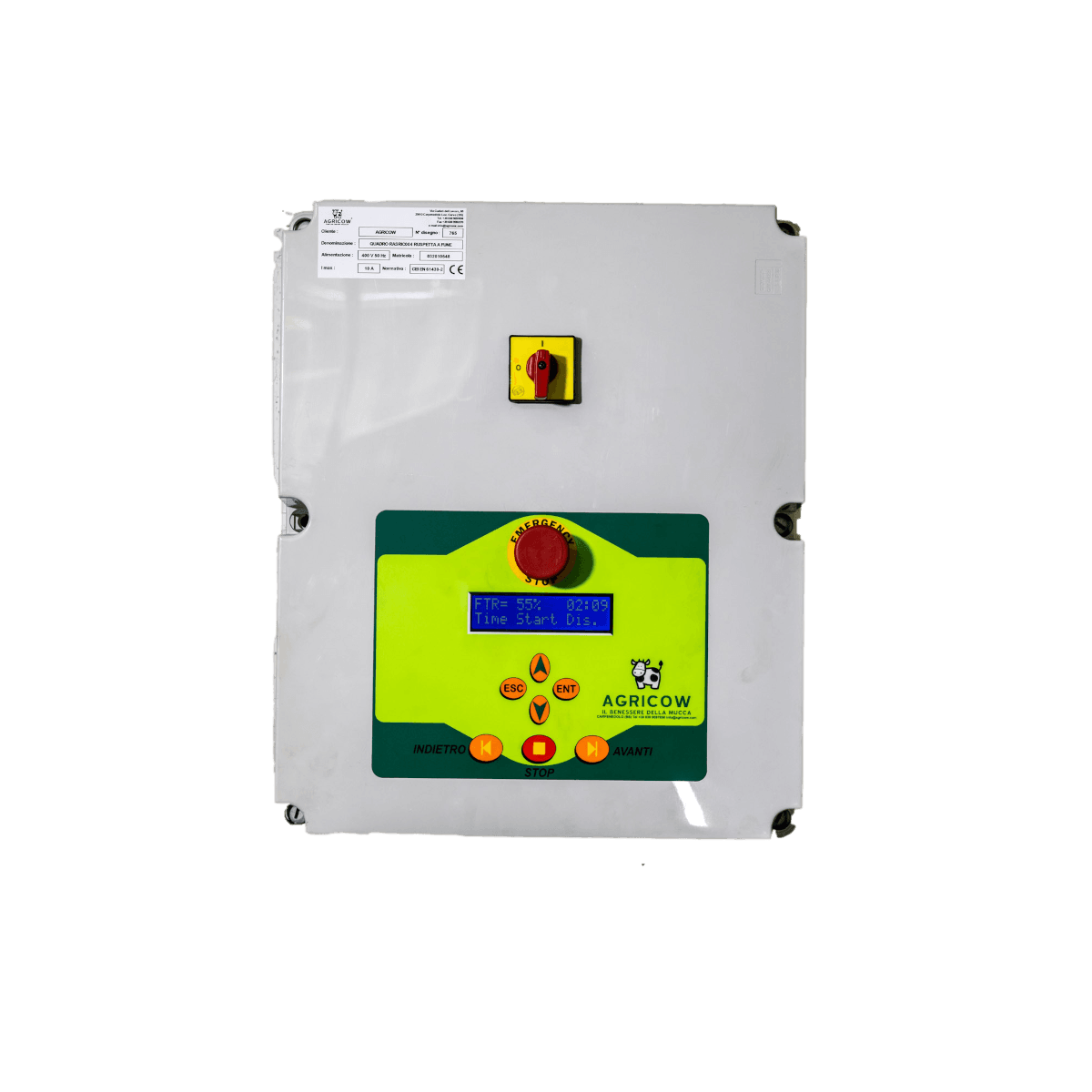

CONTROL PANEL

the electrical panel has a computerized control for maximum safety and a timer for daily programming of up to 24 starts which allows the farmer to always use it without causing stress to the animals

EASY INSTALLATION AND USAGE

Agricow scrapers are adaptable to any lane and the installation does not require any particular masonry work. All the necessary supports are supplied to guide the operator in the proper assembly in the barn

WARRANTY, SPARE PARTS, ASSISTANCE

Agricow provides complete consultancy: from the customized project to the technical drawing and installation. Our assistance service guarantees prompt repairs thanks to the availability of our original spare parts

Ensure the correct hygiene and welfare for your cows

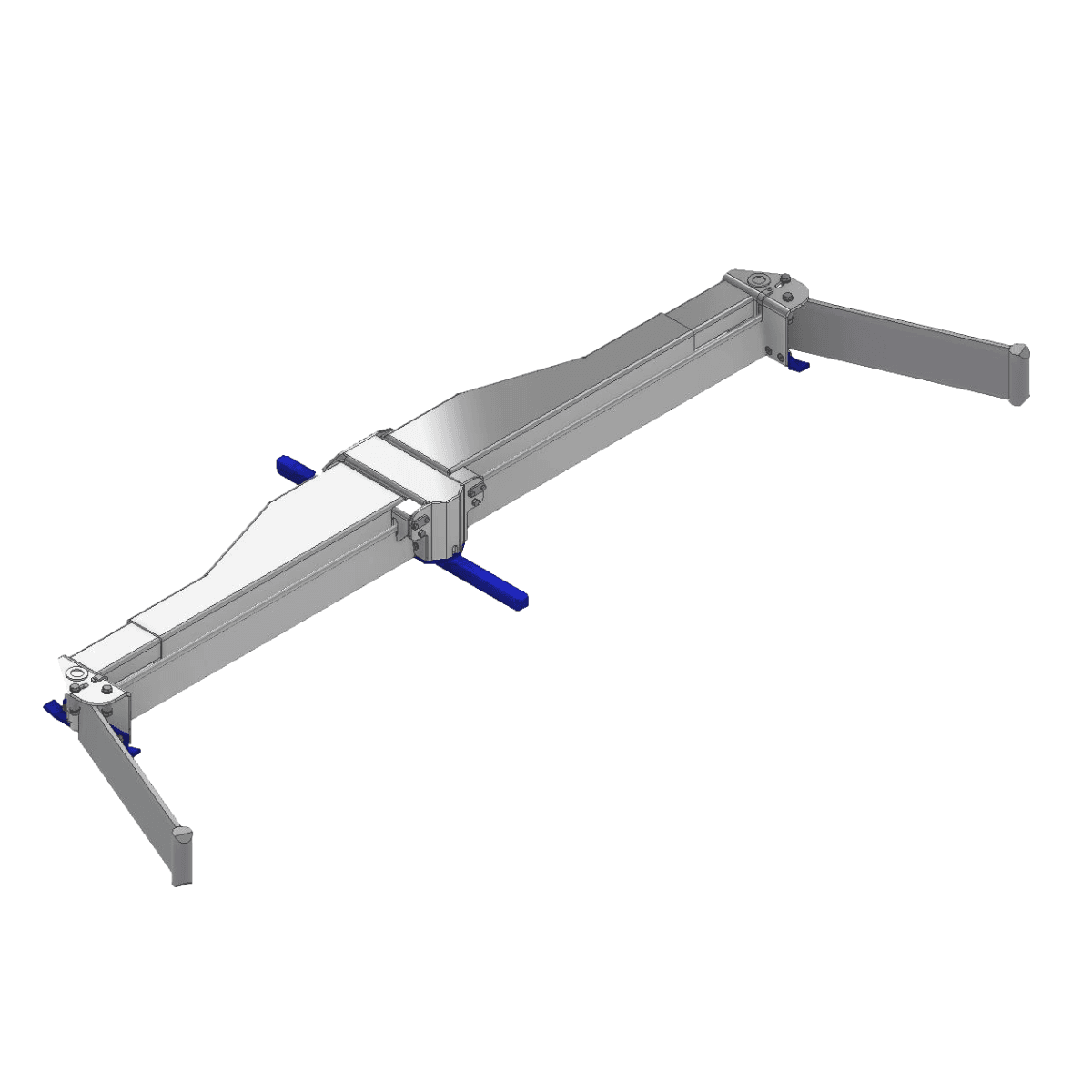

1 - SCRAPER

custom-made

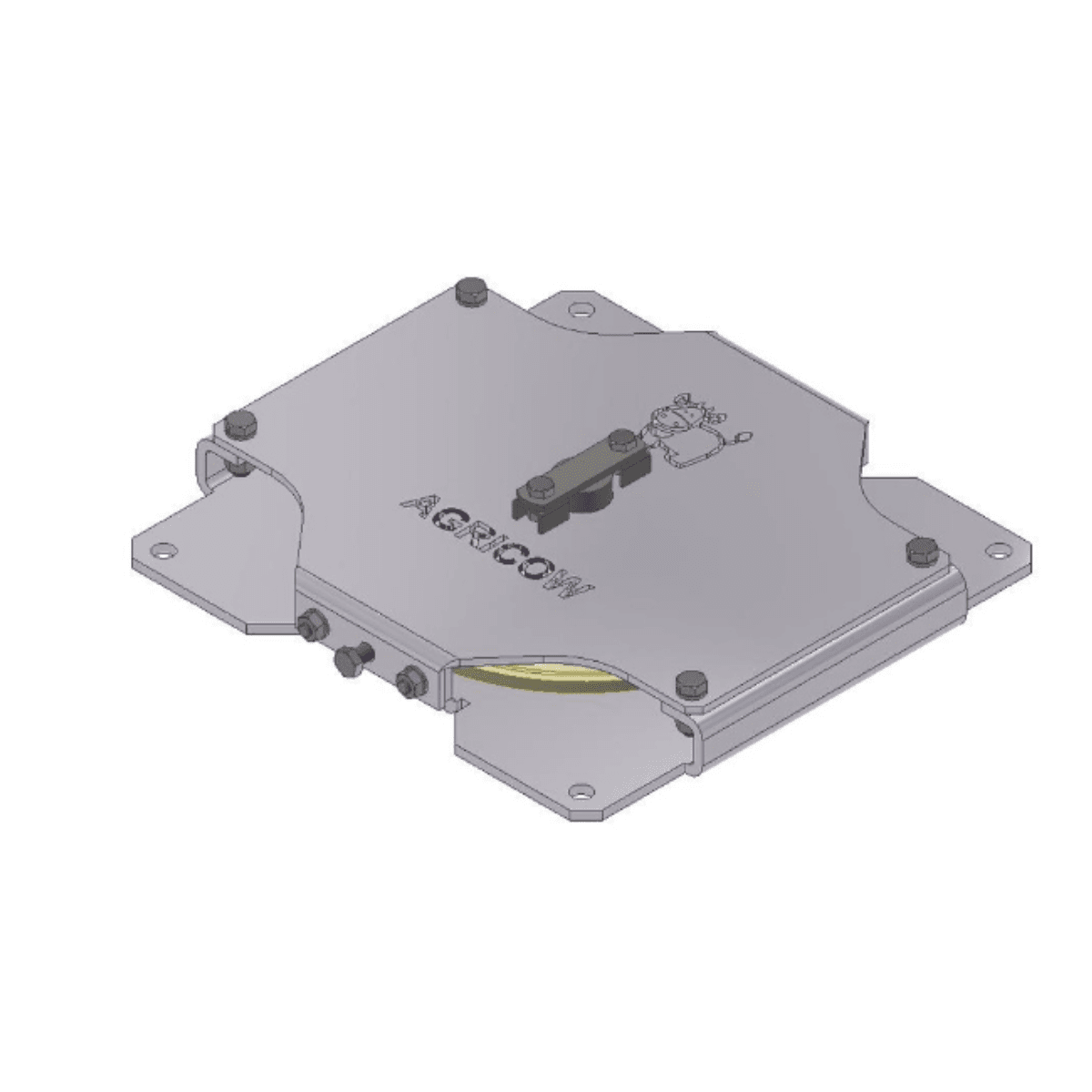

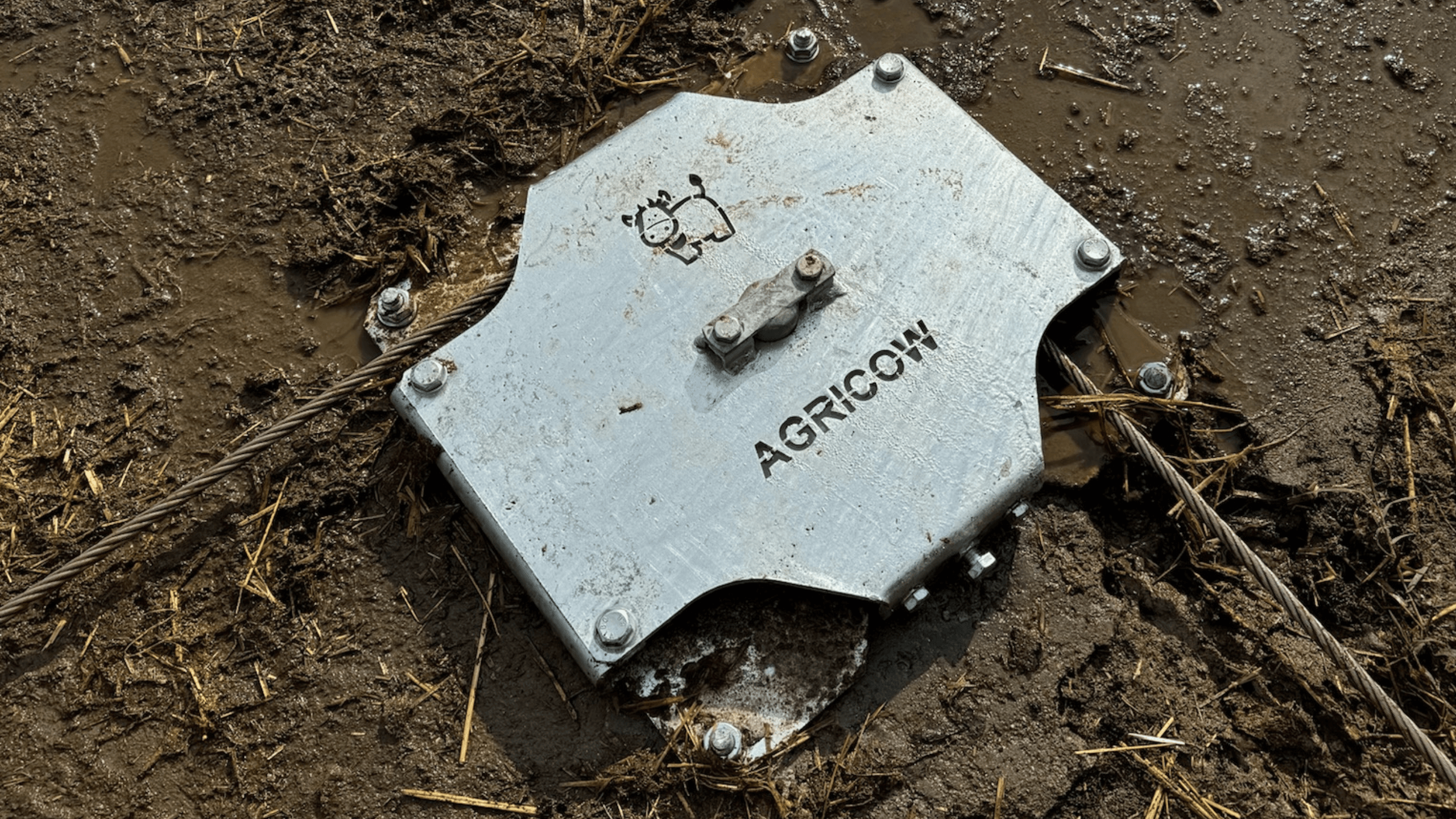

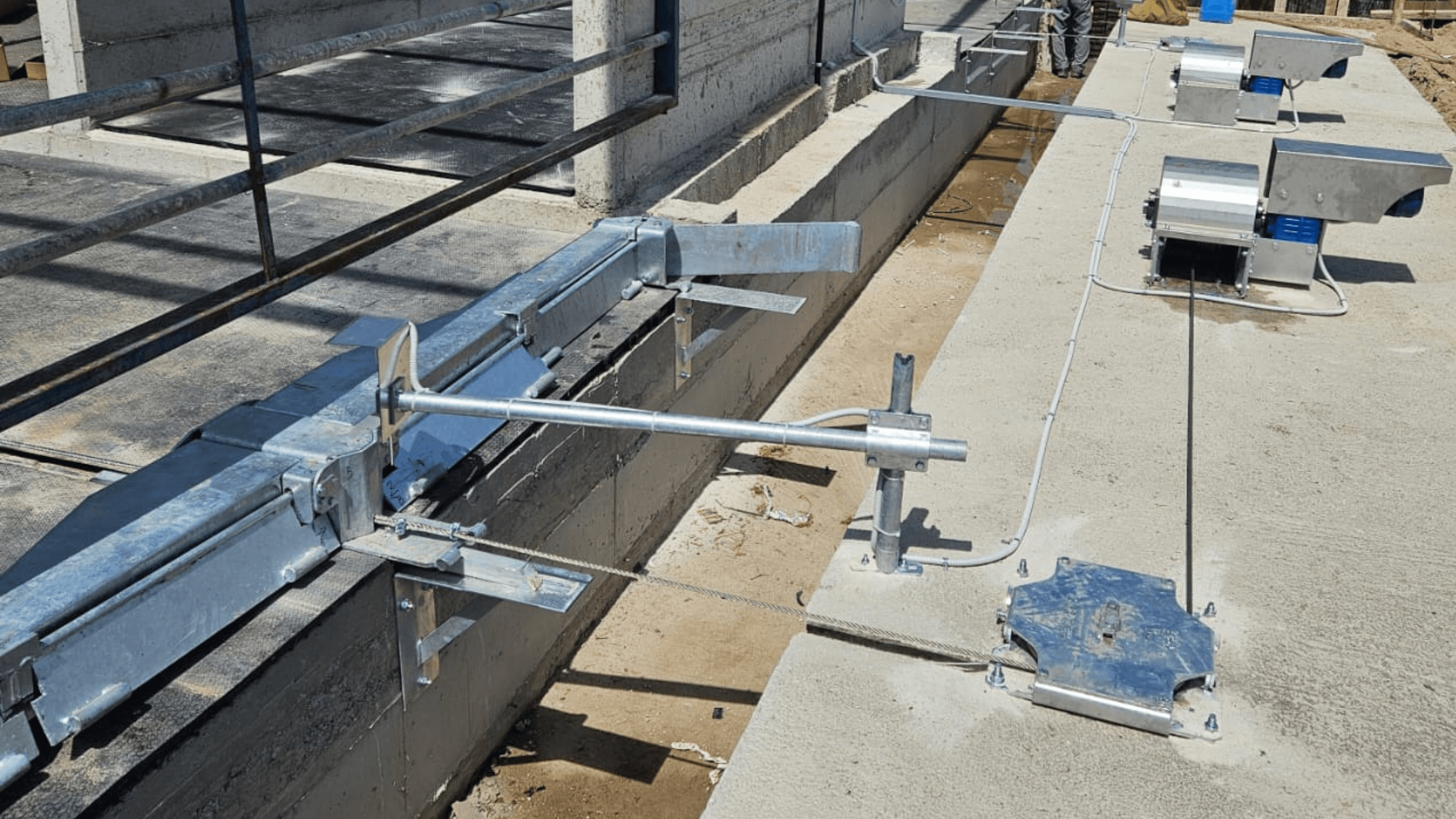

2 - REVERSE PULLEY

self-cleaning

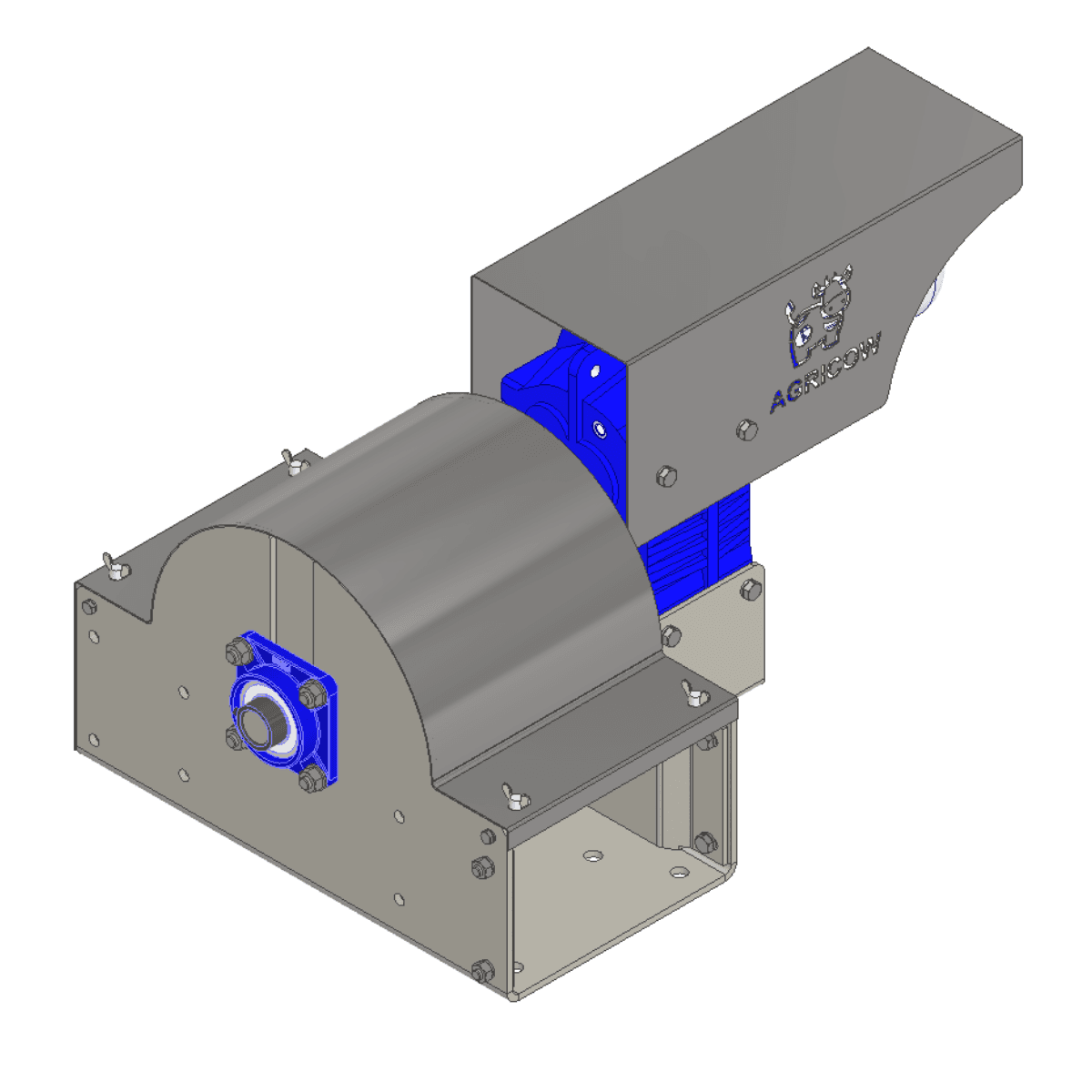

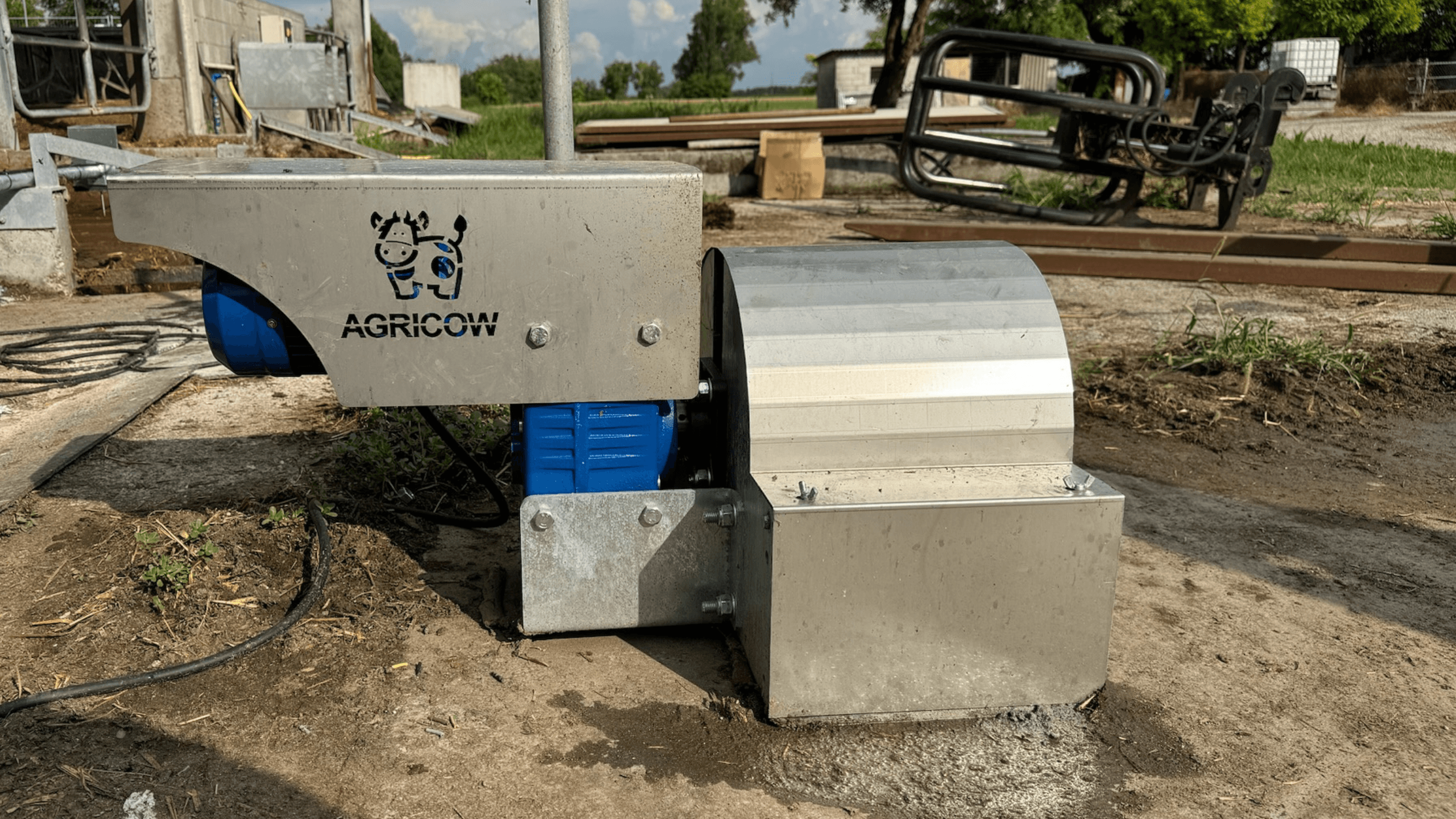

3 - TRACTION UNIT

low energy consumption

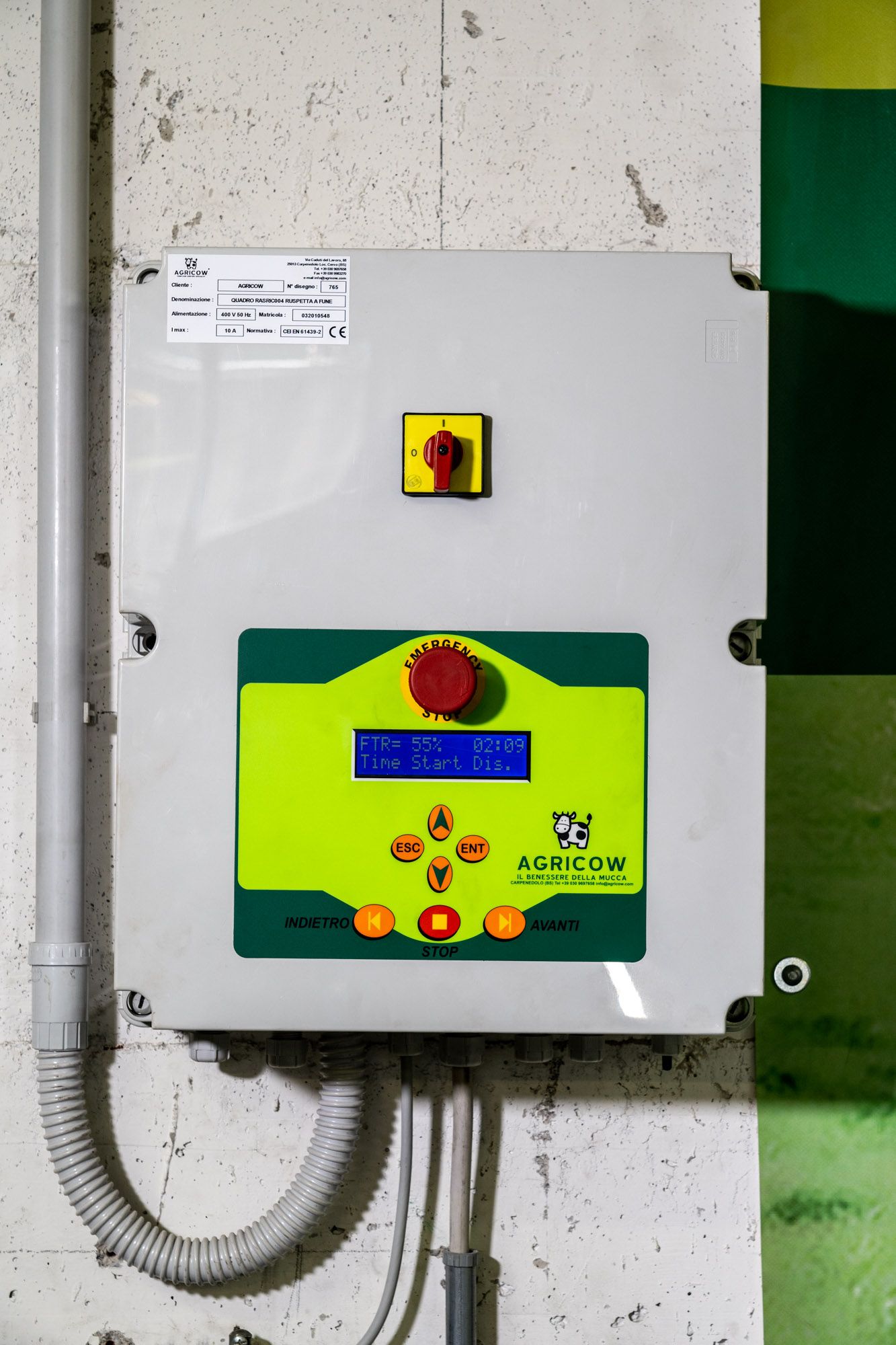

CONTROL BOX
automated with anti-freeze system.
LIMIT SWITCH WITH ANCHORAGE BRACKET OR MAGNETIC LIMIT SWITCH
TECHNICAL INFO
N. of Motors
2
Supply voltage (V)
380 V
Frequency (Hz)
50 hz
Power (Cv)
1,5 Cv
Consumption (Kw/h)
1,1 Kw/h
Total weight (Kg)
500 kg
Scraper size
variable depending on lane size
Scraper movement speed (mt / min)
5 mt/min
